Easily transportable
Easy to install and remove
ROV deployable
Unlimited depth rating
Cost effective

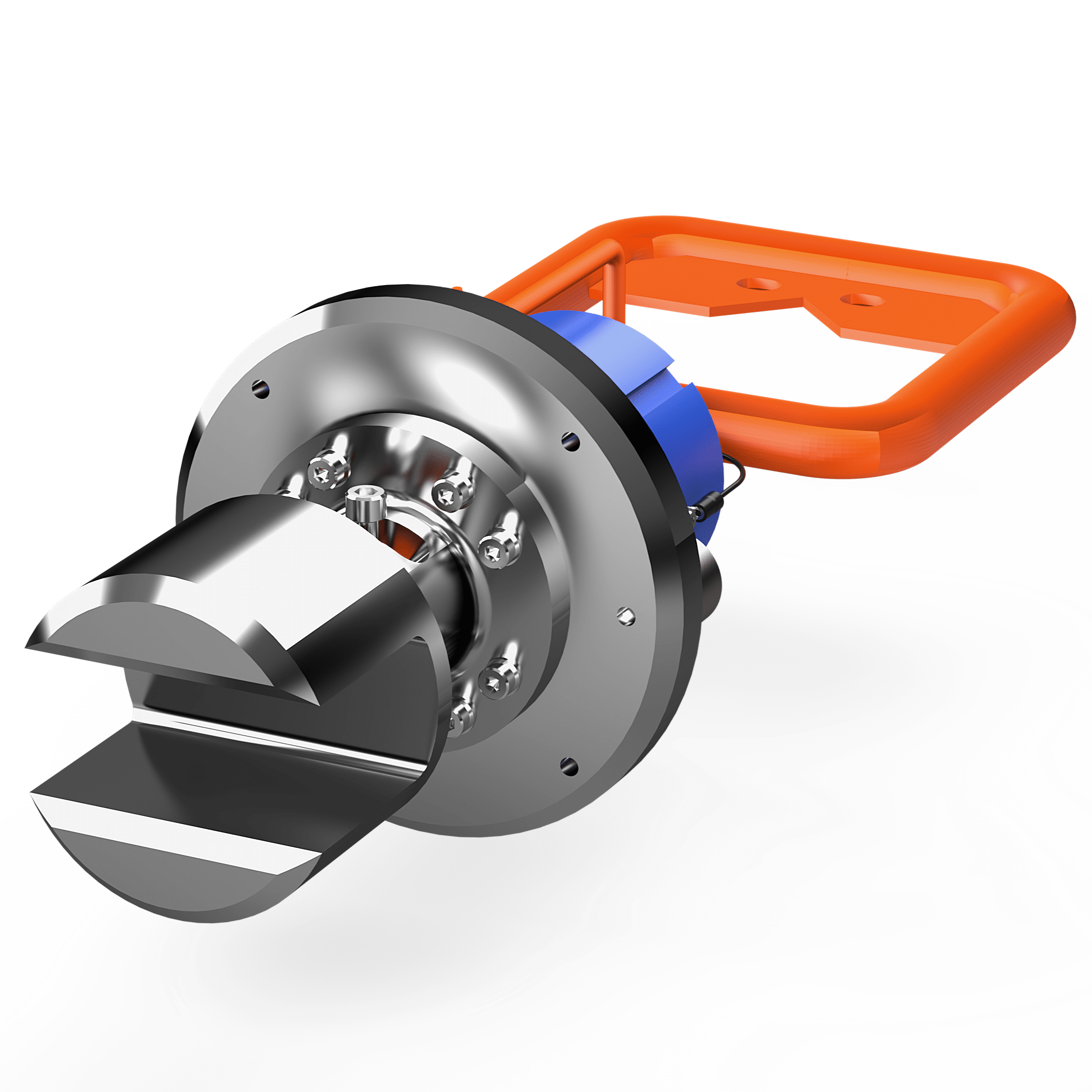

The TMT Manual Torque Tool is designed to operate subsea infrastructure valves that only require low torque that can be applied by an ROV manipulator.
Easily transportable
Easy to install and remove
ROV deployable
Unlimited depth rating
Cost effective
The TMT Manual Torque Tool can be fitted with a variety of torque interfaces that comply to ISO 13628-8; Type A paddle, Type B and Class 1 & 2, 3 and 4 valve interfaces. It is held by ROV manipulator jaws, with torque feedback provided through the use of a dial, showing the angular deflection of the tool in degrees. The tool can also be fitted with a removable acetal nose cone to interface with ROV Class 1 to 4 Valve Buckets.
TMT-0005-3845
Maximum Torque: 162 Nm
Dimensions (mm): ∅153 x 402 (L)
Weight in Air: 4.2 kg
Weight in Seawater: 3.0 kg
TMT-0004-8531
Maximum Torque: 216 Nm
Dimensions (mm): ∅153 x 402 (L)
Weight in Air: 5.0 kg
Weight in Seawater: 3.6 kg
