4” to 10” cutting diameter range
Lightweight, portable design
ROV deployable
Modular ROV handles to suit application (horizontal/vertical cuts)

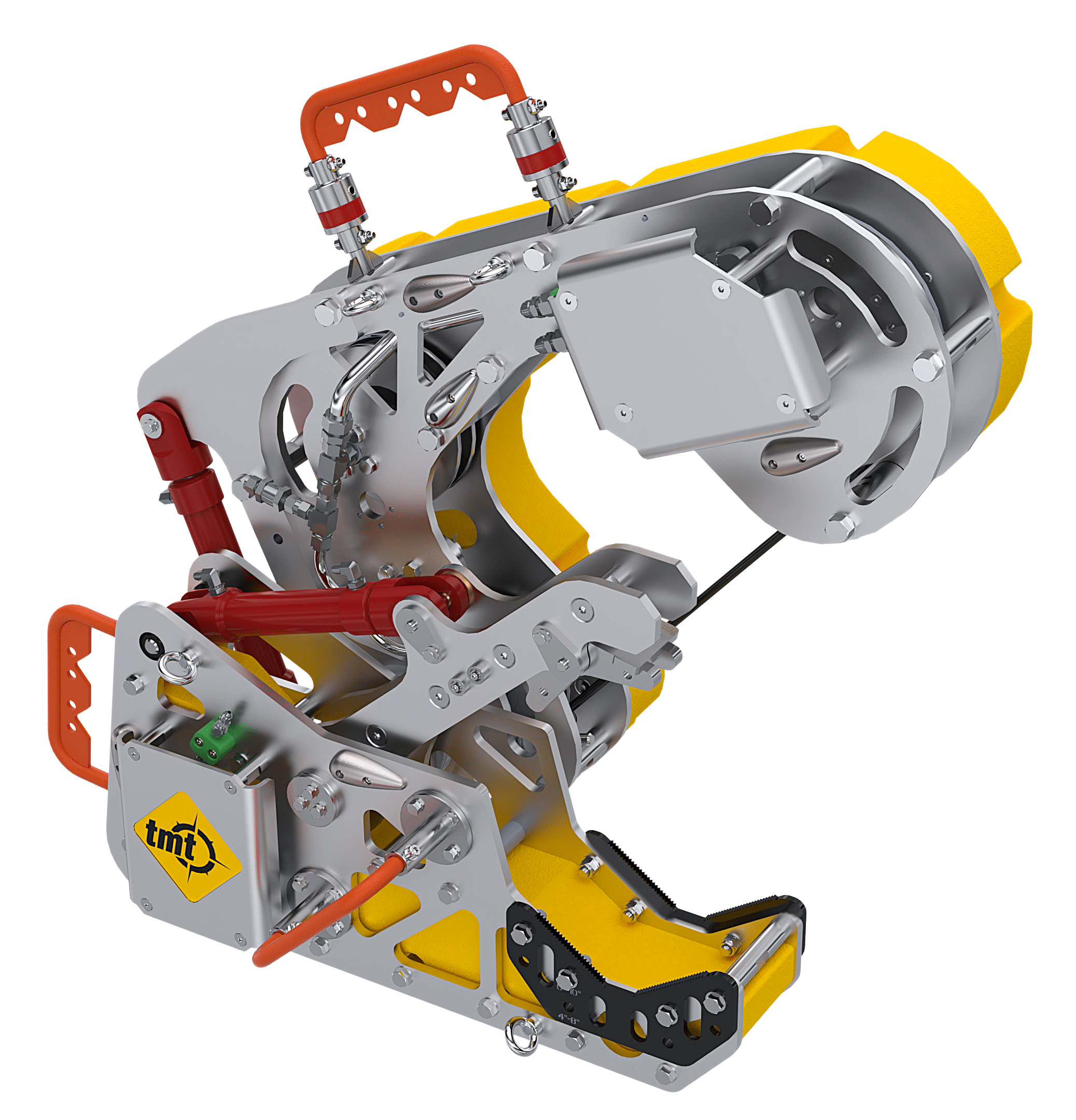

The 4”-10” Diamond Wire Saw is designed for maximum performance in confined spaces.
4” to 10” cutting diameter range
Lightweight, portable design
ROV deployable
Modular ROV handles to suit application (horizontal/vertical cuts)
The compact design makes it ideal for applications requiring rapid deployment and cutting. The saw can be attached to profiles in any orientation. Free flown cutting can also be performed with the clamp mechanism removed.
An ROV mounted Control Unit optimises feed speed and cutting force, minimising wire wear and breakage events.
TMT can customise the saw to suit customer requirements.
Dimensions, Clamp Fully Open (mm): 572 (W) x 1056 (L) x 1006 (H)
Weight in Air: 128 kg
Weight in Water: 56 kg
Hyd Flow, max (cont./int,): 60 Lpm/75 Lpm
Hyd Press, max (cont./int./pk): 140/175/225 bar (2030/2540/3250 psi)
Depth Rating: 2000 m
